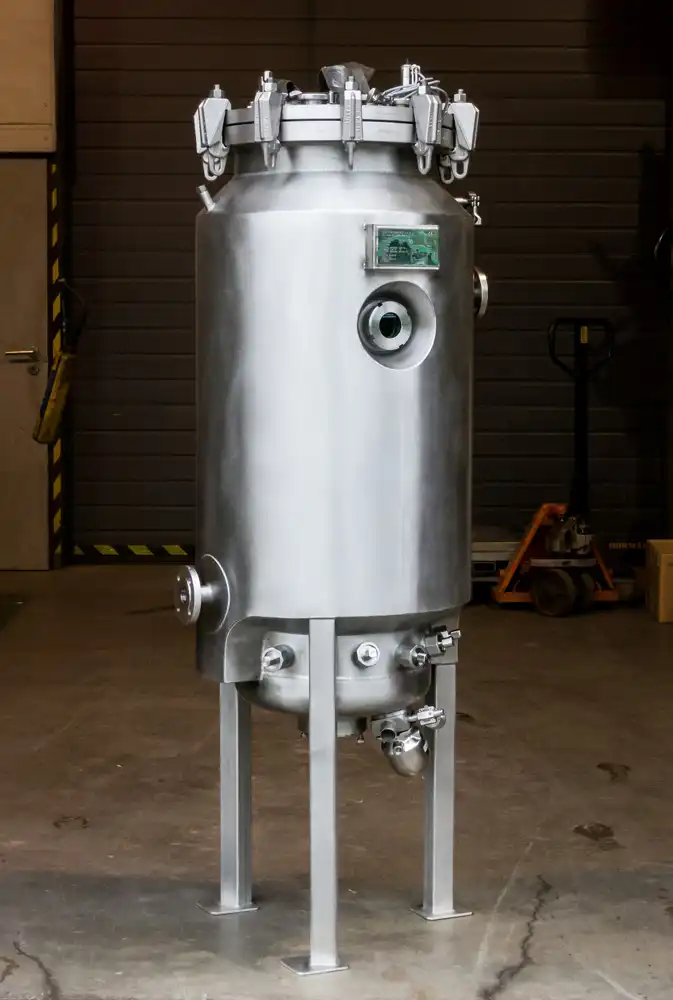

FERMENTER 100 L | LEHMANN INDUSTRIE

APPLICATION

Agitated pressure reactors and autoclaves.

Working volume 100 L
Operating temperature from -20 to 155°C
Operating pressure from -1 to 6 barg
Heated jacket (steam 6 bar), isolation in stainless steel cover
Material of construction: wetted material stainless steel AISI 316L
Surface grinded Ra ≤ 0,8 μm
Bottom magnetic stirrer, 3 x Rushton turbines with a diameter of 135 mm, Liquitec, type bio-m BMAF 1200
Electric drive 1,1 kW with frequency inverter
Speed range 130 – 700 rpm
Removable mixing baffles
Bottom drain valve DN 15 GEMÜ B600 with inlet valve for steam DN 8
Removable air ring DN 15 with a system of holes at the bottom
Aseptic nozzles, Ingold type
Inoculation ports DN19 in the top lid

Client: Lonza Biotec s.r.o., Czech Republic
