APPLICATION

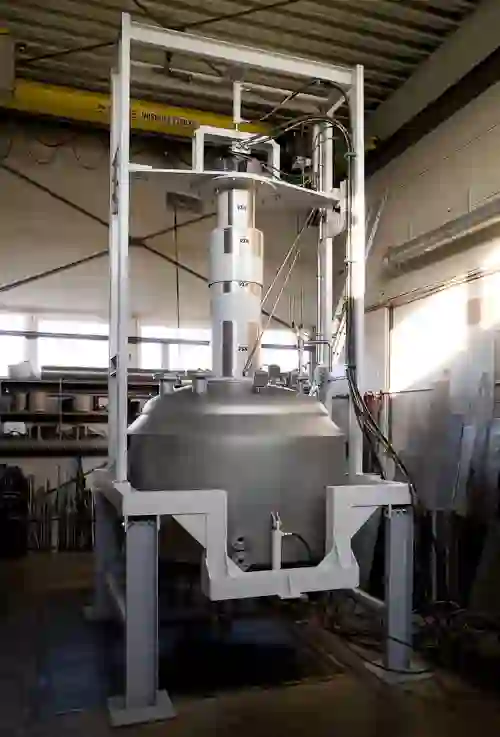

Equipment used during the filtration and drying phase of a chemical process.

KEY FEATURES

  • Material of construction stainless steel 1.4571
  • Working temperature -20°C/150°C
  • Maximum working pressure 3 bar(g)
  • Filter area 1,5 m²
  • Grinded surface Ra ≤ 0,8 μm
  • Heating jacket, heating bottom (steam, 4 bar(g))
  • Stirrer with maximal lift of 250 mm, with function “smooth” and “sweep”
  • Continuous variable speed of stirrer 0 – 30 rpm
  • Hydraulic drive, hydraulic stirrer lift and hydraulic bottom lifting mechanism
  • Double mechanic sealing

Client: Bochemie a.s., Czech Republic
