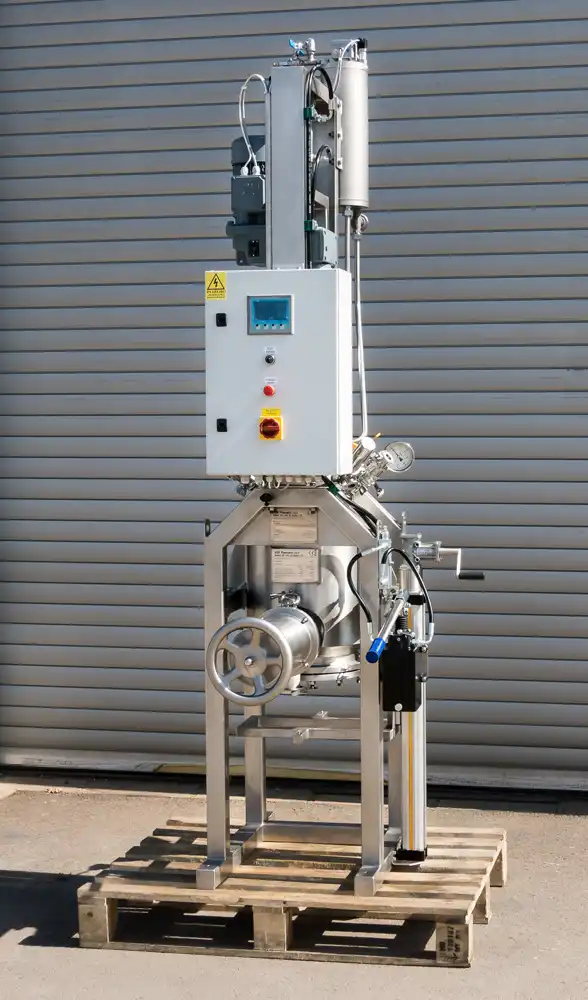

FILTER-DRYER 30 L, 1.4404 + C22
APPLICATION
Equipment used during the filtration and drying phase of active pharmaceutical ingredients (API) manufacturing.
KEY FEATURES
- 2 pcs of Agitated Nutsche Filter Dryers (ANFD)
- 1 pc from stainless steel 1.4404
- 1 pc from Hastelloy C22
- Allowable pressure -1 to 3 bar(g)
- Allowable temperature 100°C
- Wetted material AISI 316L/Ti
- Heated jacket 3 bar(g), material AISI 304
- Electric drive 1,1kW with frequency inverter (11 to 32 rpm)
- Double mechanic sealing Eagle Burgmann
- Hydraulic axial movement of stirrer (manually driven by pump)
- Lifting of bottom (manually driven by hand crank)
- Push out branch with manual opening
- Ex / ATEX explosion proof execution
Client: MercaChem (Symeres) Czech Republic
