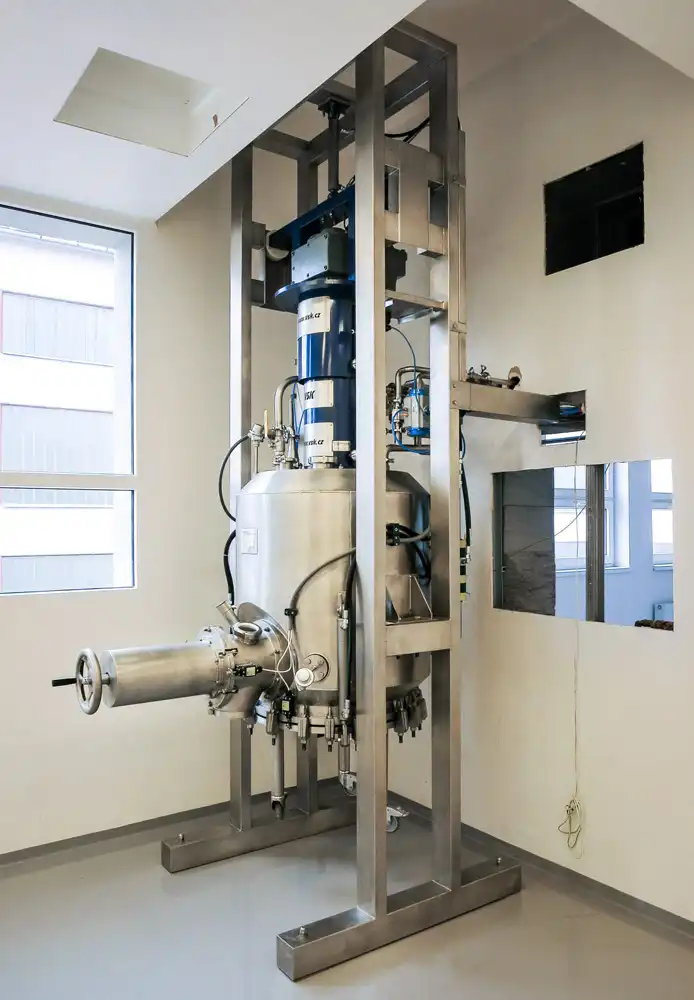

FILTER-DRYER 330 L
APPLICATION
Equipment used during the filtration and drying phase of a chemical process.
KEY FEATURES
- Agitated Nutsche Filter Dryer (ANFD) DN600
- Allowable pressure -1 to 3 bar(g)
- Working temperature 120°C
- Material of construction: Wetted material stainless steel AISI 304
- Heating jacket (1 barg)
- Filtering area ø 600 mm
- Electric drive 3 kW, 5 to 30 rpm
- Rope sealing
- Hydraulic axial movement of stirrer
- Hydraulic lifting of filtering bottom
- Push out branch with manual opening
Client: CzechiaChem s.r.o., Czech Republic
