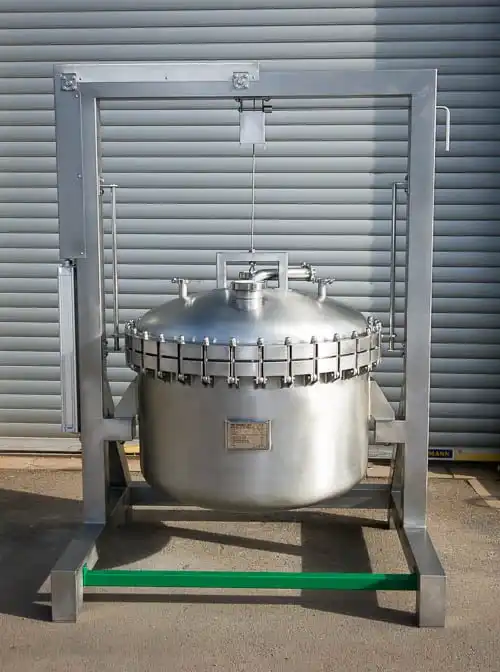

PRESSURE FILTER F2101, 4 BAR
APPLICATION
Equipment used for the filtration and drying phase in the synthesis of pharmaceutical intermediates and active pharmaceutical ingredients (API).
KEY FEATURES
- Static Nutsche Filter (NF) DN1000 with a pneumatic lid lift
- Maximum pressure -1/+4 bar
- Maximum temperature 170°C
- Material of construction stainless steel AISI 316L
- Filtering plate diameter 1000mm
- Polished internal surface
- Removable perforated screen, tightening ring for filter fabric fixation
- Pneumatic lifting of lid (mechanism with roller and wire)
- Mechanical safety lock of upper position
- Ex / ATEX explosion proof execution
Client: Teva Czech Industries s.r.o., Czech Republic
