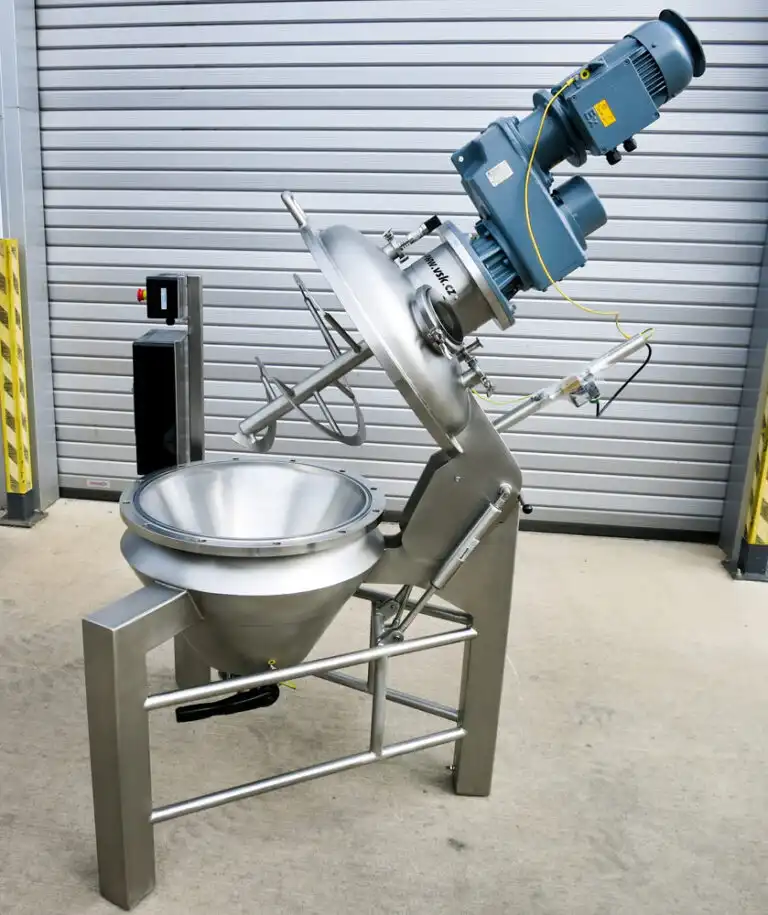

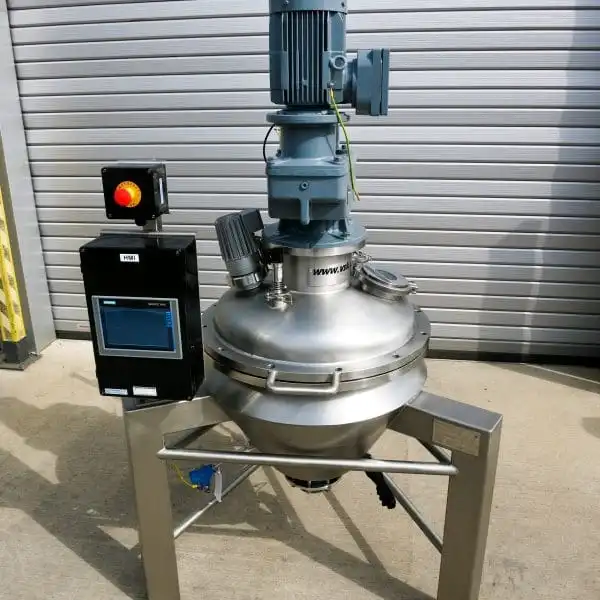

VERTICAL RIBBON MIXER DRYER 50 L
APPLICATION
Mixing & drying of thermo-sensitive API products.
KEY FEATURES
- Vacuum Vertical Ribbon Mixer Dryer
- Volume 50 L
- Material of construction stainless steel AISI 316L/Ti
- Internal surface grinded Ra ≤ 0,8 μm
- Operating pressure -1 to 0 barg
- Operating temperature from -20 to 150 °C
- Heated jacket 3 barg
- Conical spiral agitator
- Electric drive 1,5 kW with frequency invertor, variable speed 13 – 38 rpm
- Mechanical dry running seal
- Easily opening of top lid (gas spring with a damper)
- Outlet nozzle DN80 with input G1/8″ for nitrogen
- PLC control panel with touch screen LCD
- Ex / ATEX explosion proof execution
Client: Grindeks, Riga, Latvia
