STATIC NUTSCHE FILTERS

We have developed and designed our own range of VSK Static Nutsche Filters (NF), Agitated Nutsche Filters (ANF) and Agitated Nutsche Filter Dryers (ANFD) used for solid-liquid separation processes, by filtration under pressure and vacuum drying; in chemical, pharmaceutical, food industry and cosmetics any many others, from pilot to production scale.

A common feature of these filters is the manual emptying of the cake through the upper part of the device, by opening the top lid. Depending on the diameter of the lid, the resulting mass and the type of application, several variants of lid opening are designed.

Manual lid removal

Hinged lid

Special designs

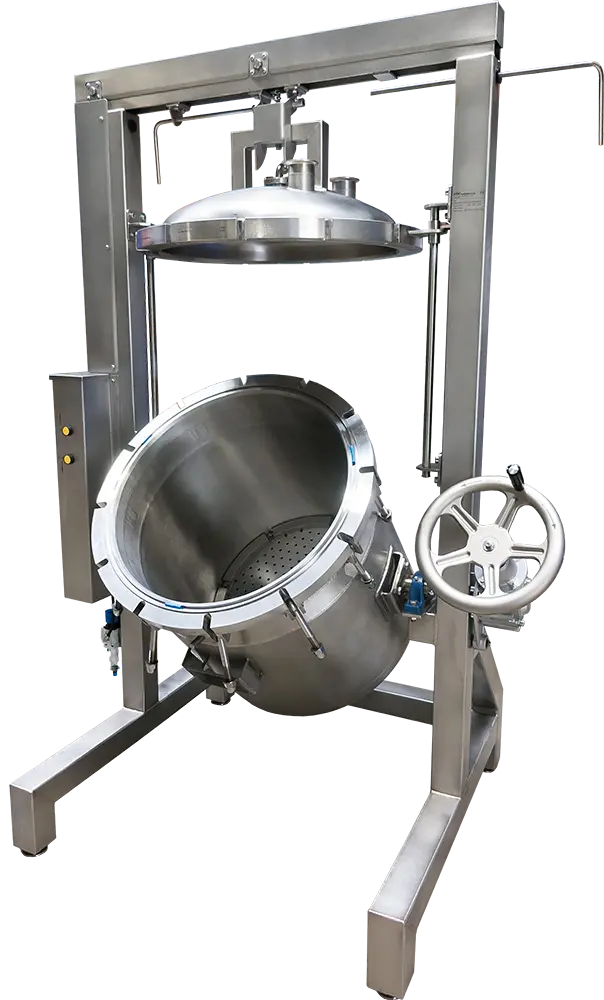

Hand crank and swing-out lid

Pneumatic lid lift

KEY FEATURES & OPTIONS

  • Pressure and atmospheric apparatus for filtration of pharmaceutical and chemical products
  • Maximum operating pressure from -1 (vacuum) to 10 bar
  • Volumes 5, 10, 25, 50, 100, 250, 500, 1000 liters*
  • Perforated filter screen with a ring for filter fabric attachment
  • Heated jacket (duplicator)
  • Cake washing
  • CIP / SIP washing and spraying systems
  • CE certificate, PED (2014/68/EU), ASME U Stamp, ATEX (2014/34/EU)

MATERIAL OF CONSTRUCTION

  • Stainless steel (DIN 1.4571, DIN 1.4541, DIN 1.4301, …)
  • Nickel, nickel alloy (Hastelloy®)
  • PP, PVDF
  • Coating (PFA RubyRed®, Halar® E-CTFE)

HEATING

  • unheated
  • heated jacket (duplicator)
  • heating spiral

FILTER SCREEN

  • perforated according request

FILTER FABRIC ATTACHMENT

  • pressure ring with bayonet
  • pressure ring bolted
