Tube Filling and Sealing Machines
Tube filling and sealing machines for plastic, laminate and metal tubes are mainly used for filling of:
- Cosmetic and pharmaceutical products such as toothpaste, denture cream, ointments, cream, gel, shampoo, hair dye, …
- Food products (ketchup, dressings, mayonnaise, mustard or cheese)
- Household chemicals, construction chemicals and car accessories (shoe polish, adhesives, sealants, paints, silicone, lubricating paste, Vaseline, …)
Work steps (workstations):
- Tube magazine, where the tubes are inserted (at the fully automatic machine)
- Feeding the tube by pushing it into the tube holder
- Tube orientation by means of a print mark or pharmaceutical code
- Filling station, where the tubes are filled using filling cylinders
- Closing station, where the tubes are welded (plastic and laminate) or folded (aluminum)
- Embossing station, where the batch number and date are embossed
- Cutting station, where the sealing seam at the end of the tubes is cleanly cut off
- Tube ejection station

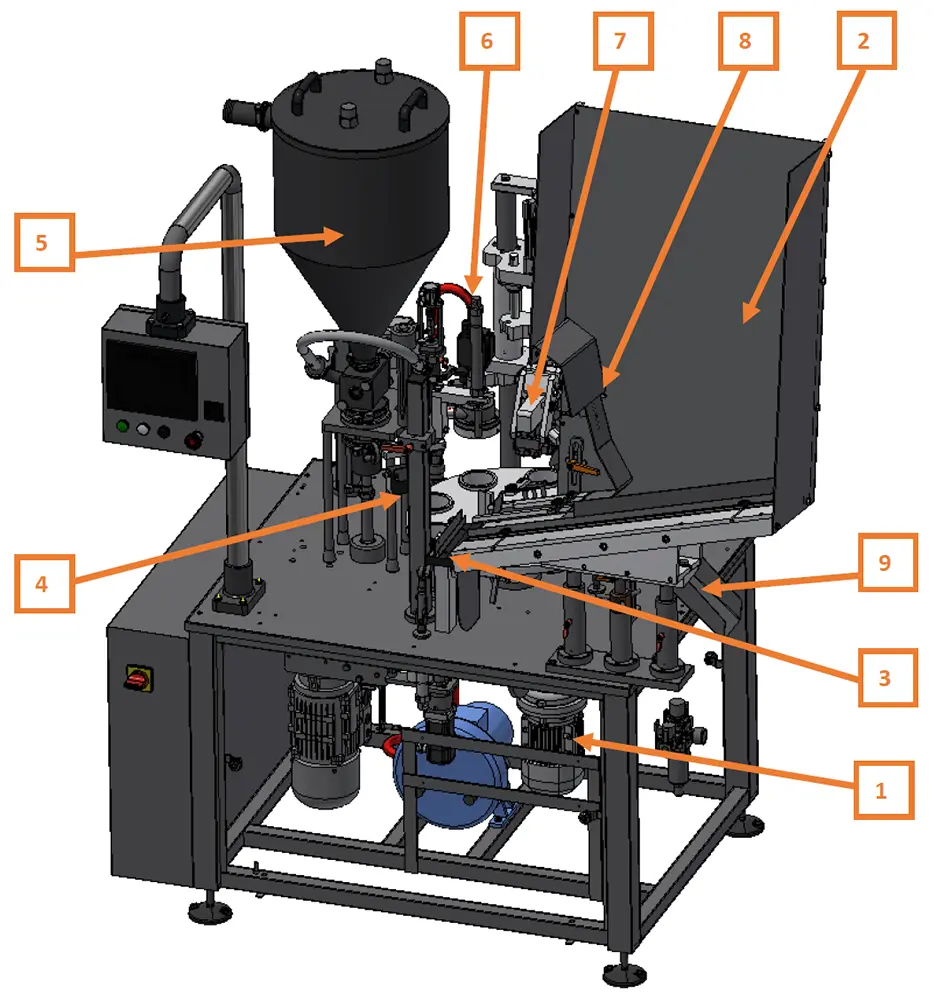

Description of the tube filling machine
1-Table drive, 2-Tube magazine, 3-Tube loading, 4-Tube orientation, 5-Filling device, 6-Tube heating, 7-Tube welding, 8-Tube cutting, 9-Tube ejection
We offer two types of machines:
- Semi-automatic tube filling machine – the operator inserts the tubes manually into the tube holder (nest), all other work steps are carried out automatically
- Fully automatic tube filling machine
