Tube Filling and Sealing Machine Tubeline

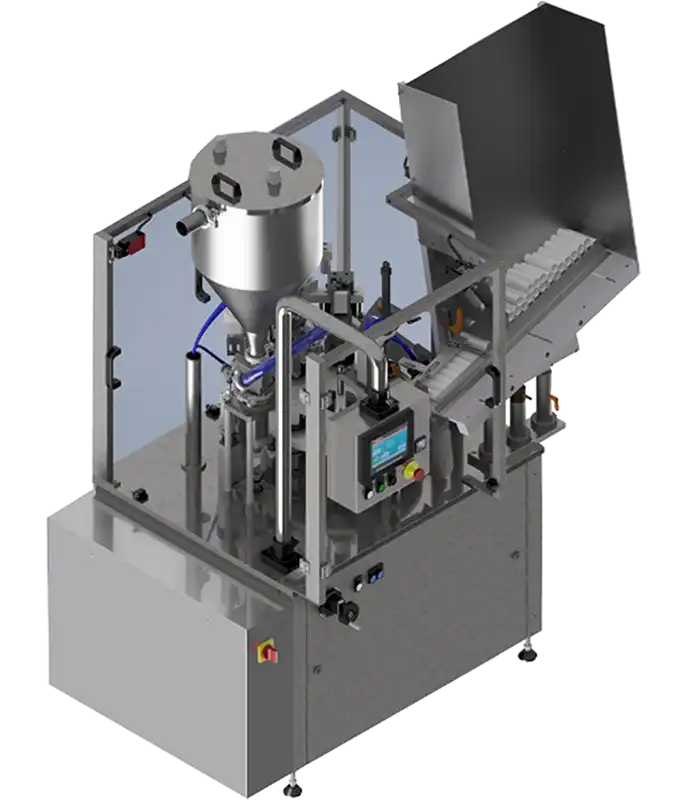

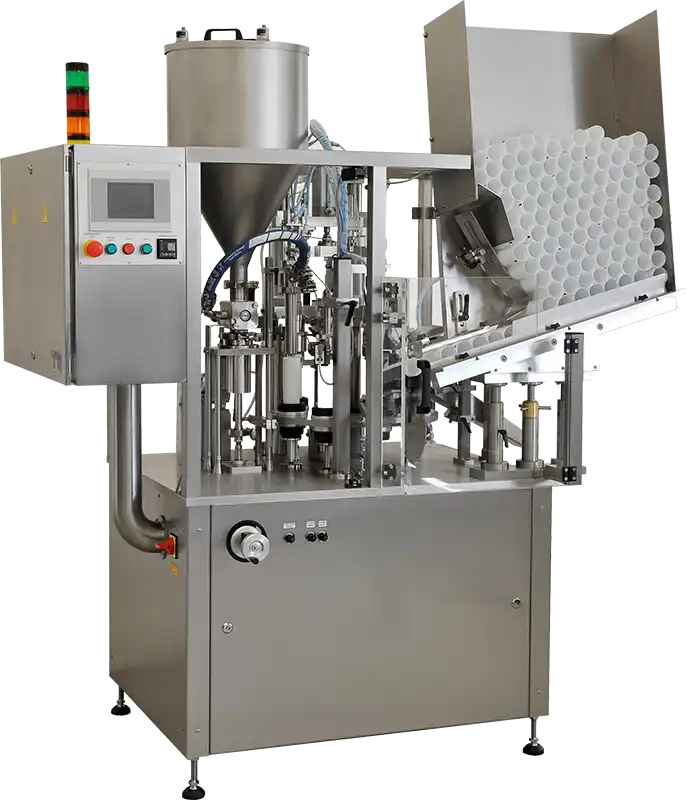

Fully automatic Tube filler for filling and sealing plastic, laminate and metal tubes
The machine for filling and sealing plastic and metal tubes is mainly intended for cosmetic and pharmaceutical products such as creams and ointments, toothpaste as well as food products (ketchup, sauces, mayonnaises and cheese).
The machine can be retrofitted with a sealing unit for plastic tubes (heating the tube with hot air), a system for sealing metal tubes (double or triple fold) or their combination.
The machine is equipped as standard with a unit for punching the date, a reservoir for the product to be filled with level control, an automatic tube feeder to the carousel and a device for erecting the tubes.
MAIN ADVANTAGES of the Tube filler Tubeline
- Excellent price-performance ratio
- Easy conversion to other sizes, exchange of the tube holders and heat heads
- Hot filling
- Filling of very dense products such as petroleum jelly
- One single machine can be used to fill both plastic and metal tubes
KEY FEATURES of the Tube filler Tubeline
- Machine frame with height-adjustable feet
- Tube magazine with automatic loading device
- Rotary table for moving tubes between stations
- Unit for automatic tube alignment according to black marker
- Product tank with 35-liter capacity including product level control

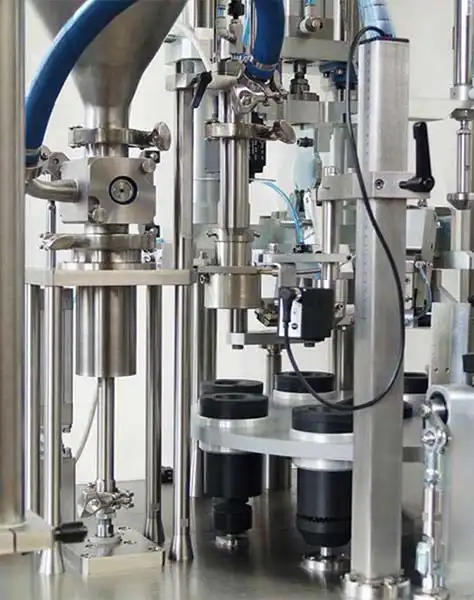

- Filling unit with three-way valve and volume filling cylinder
- Tube lifter for filling “from below”
- Pneumatic closing of filling nozzles

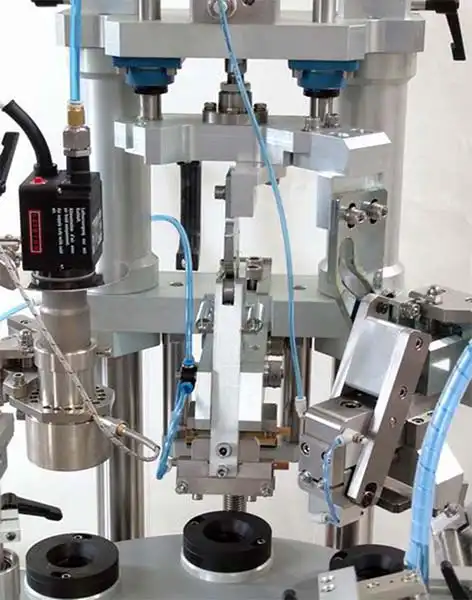

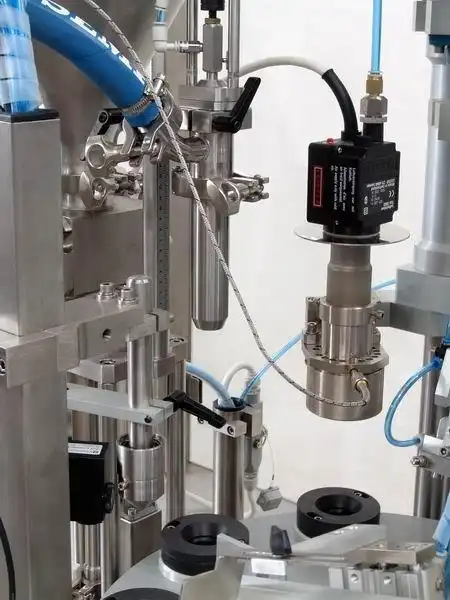

- Hot air unit for tube heating

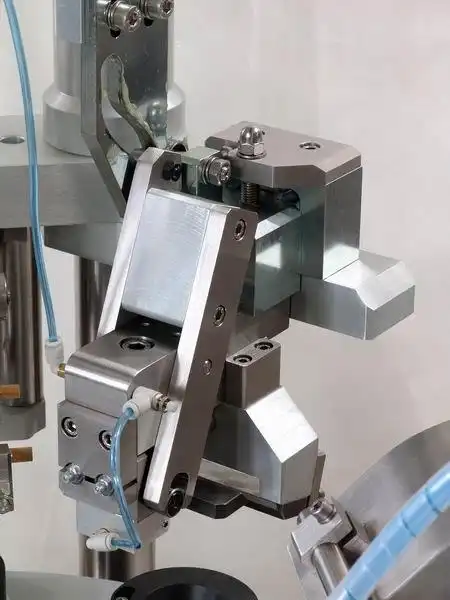

- Welding press unit incl. embossing
- Welding edge cutting unit
- Automatic ejection of finished tubes
- Control panel with touch screen display
- CE safety guards
Previous
Next
OPTIONS
- Product tank heating
- Product tank agitator
- Nozzle blowout after nozzle closure
- Unit for creating round welds
- Unit for cutting the hinge hole in the tube weld
TECHNICAL CHARACTERISTICS
| Tubeline (P – plastic tubes, K - metal tubes) | |
|---|---|
Production Output | up to 40 tubes/min |
Tube diameter range | 13-50 mm |
Tube length range | 80-220 mm (with closure) |
Filling volume | I. 10-40 ml stepless adjustable (Ø 26 mm) |
II. 20-120 ml stepless adjustable (Ø 45 mm) | |
III. 50-250 stepless adjustable (Ø 65 mm) | |
Funnel volume | 35 l |
Power Supply | 3+PE+N 230/400 V 50 Hz |
Power consumption | 4 kW |
Pneumatic components | SMC |
Air pressure | 5-6 bar |
Air consumption | up to 200 L/min |
Machine dimensions | length: 1 250 mm, width: 1 000 mm, height: 1 900 mm |
Machine weight | 650 kg |
Control system | Allen Bradley / Siemens |
