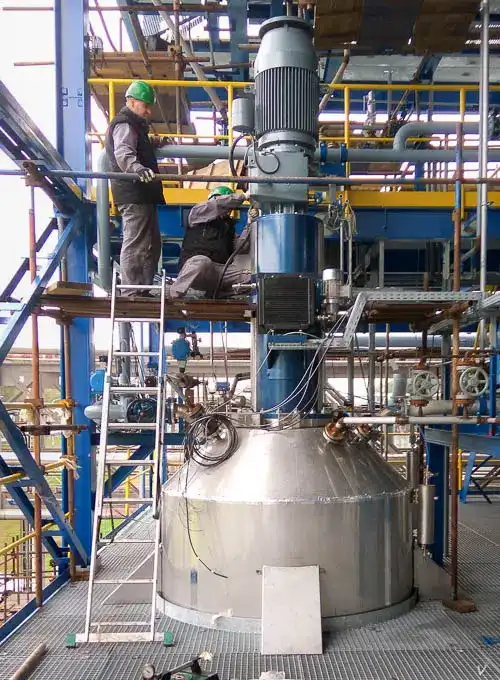

HYDROGENATION REACTOR R301 – 6000L, 60BAR, 250°C
APPLICATION
KEY FEATURES
- Designed pressure from -1 to 60 bar(g)
- Maximum temperature 250°C
- Total volume 6000 L
- Working volume 5300 L (internal diameter 1600 mm)
- Material of construction: wetted material DIN WNr. 1.4404
- Inner surface grinded Ra ≤ 0,8 μm
- Heating jacket with streaming spiral (steam 32 bar, 250°C)
- Cooling spiral (water, 1.4404)
- Double mechanic sealing with barrier fluid EagleBurgmann
- 4-blade hollow hydrogenation stirrer with divided shaft
- 75 kW drive with frequency inverter and cooling
- Variable speed of stirrer 180 to 450 rpm
- Cooling of bearings – oil circulating unit
- Hydraulic unit
- Ex / ATEX explosion proof execution
Client: BorsodChem MCHZ, s.r.o., Czech Republic
