APPLICATION

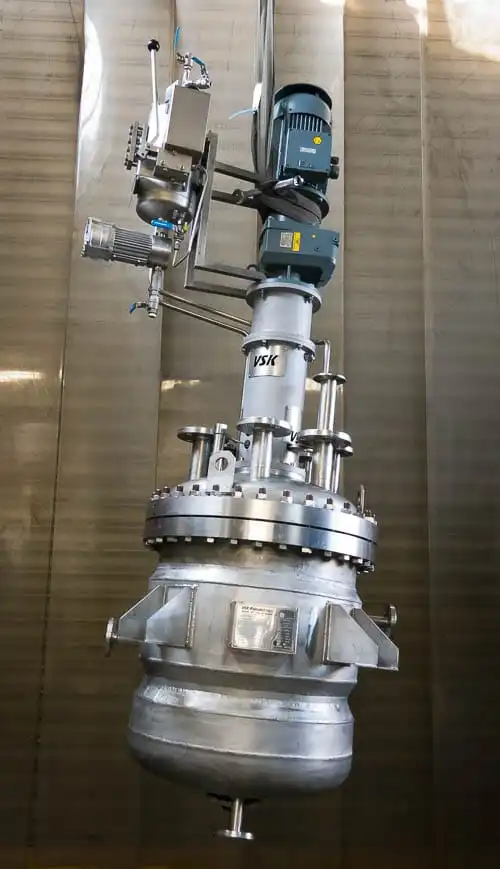

KEY FEATURES

  • Volume 200 L
  • Allowable pressure from -1 to 16 barg
  • Allowable temperature 180°C
  • Material of construction: wetted material stainless steel DIN WNr. 1.4432
  • Heated jacket on bottom – steam (to 9 bar(g), material stainless steel 1.4301)
  • Cooling jacket on shell – water
  • Easy-tightening of main flange by chain clamp
  • Turbine stirrer with 6 flat blades, adjustable on shaft
  • Electric drive 4kW with frequency invertor
  • Speed range 190 to 700 rpm
  • Double mechanic sealing Eagle Burgmann
  • Ex / ATEX explosion proof execution

Client: Spolchemie a.s., Czech Republic
