Multifunctional Unit SpAF 400 L for Sweden
Today, a unique system leaves the factory gate (like most of our tailor-made technologies, by the way).

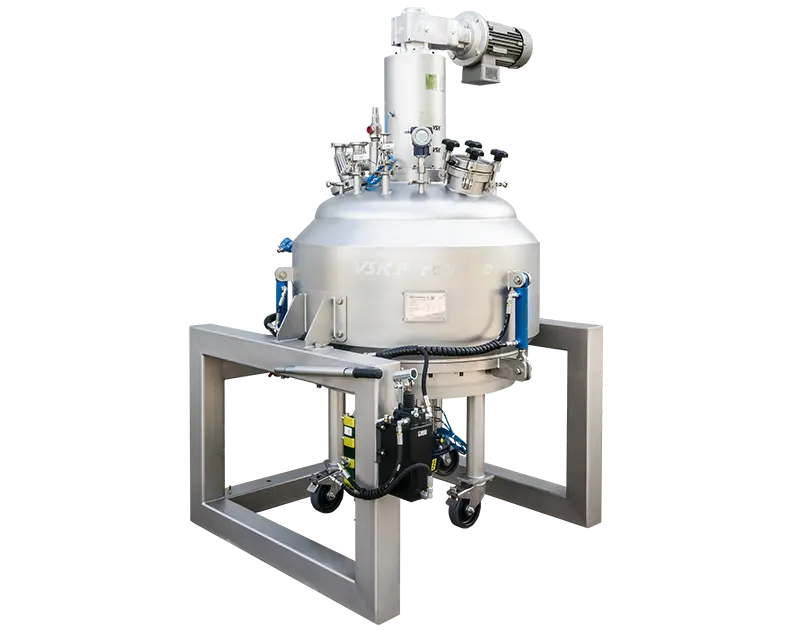

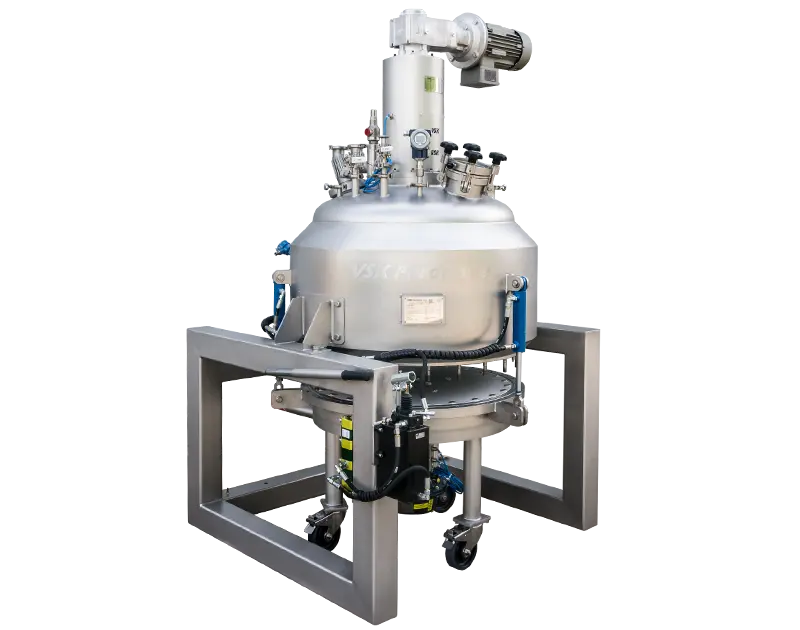

This is a multipurpose device that serves as both a filter dryer and a crystallizer in the previous process step. An interesting feature is the hydraulically lowered lower part of the filter using a manually operated hydraulic pump with lever.
The client is a science-led biopharmaceutical company from Sweden
Technical parameters:
- working pressure -1 / 3 barg
- working temperature -10 / +110°C
- total vessel volume app. 400 L, batch volume 300 L, cake volume max.120 L, cake height 250 mm
- cylindrical vessel diameter 780 mm, with heating jacket
- heating and cooling jacket up to 300 L level
- heated bottom
- wetted material 1.4404
- internal surface Ra ≤ 0,8, grinded, pickled, passivated
- jacket, footings, welded cover of thermal insulation etc. 1.4301
- bottom hydraulically lifted; hydraulic cylinders manually operated
- manually operated hydraulic pump for lifting the bottom, placed on machine frame
- ATEX Explosion-proof version (2014/34/EU) – II 2G IIB T3 internal and external space
- pressure vessel acc. to the European Directive No. 2014/68/EU (PED)
