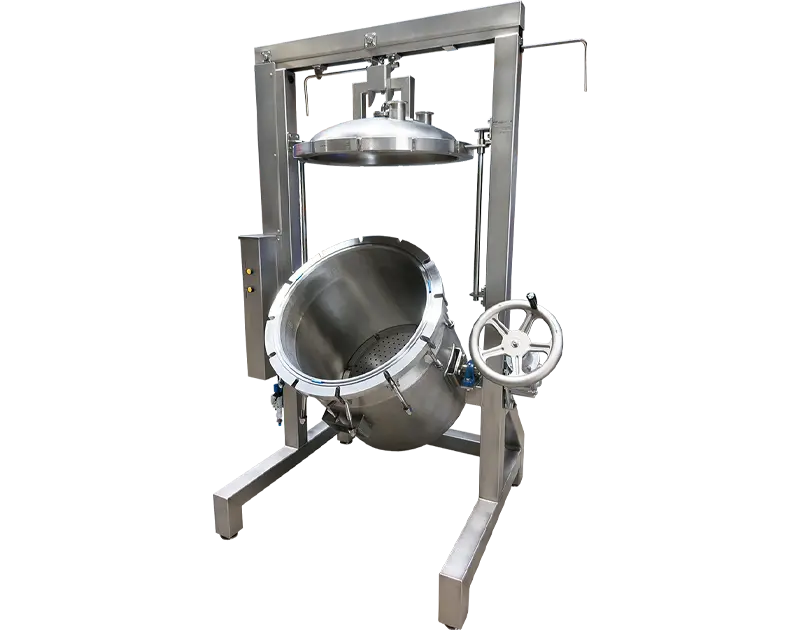

Tilting Nutsche Filter DN600
- posted by: admin
- No Comments
We are very pleased to introduce the newly delivered nutsche filter with tipping. Previous units of this type have been delivered to several European plants of the pharmaceutical company TEVA.
- Design pressure -1 / + 6 barg
- Design temperature 200°C
- Heating jacket -1 / + 6 barg, 200°C
- Total volume 215 L, volume above the filter plate 190 L
- Vessel diameter 600 mm, filter area 0,2 m²
- Removable perforated sieve with the possibility of attaching a filter fabric, clamping hoop tightened with wedges
- Wetted material stainless steel AISI 316L, grinded Ra<0,8
- Lid lifted pneumatically on a stainless steel cable via rollers
- Automatic mechanical locking of the upper position of the lid
- Tilting container (360°) using a handwheel and worm gear
- Ex / ATEX explosion proof execution (Ex II 3G IIB T3)
Client: Interpharma Praha a.s., Czech Republic
